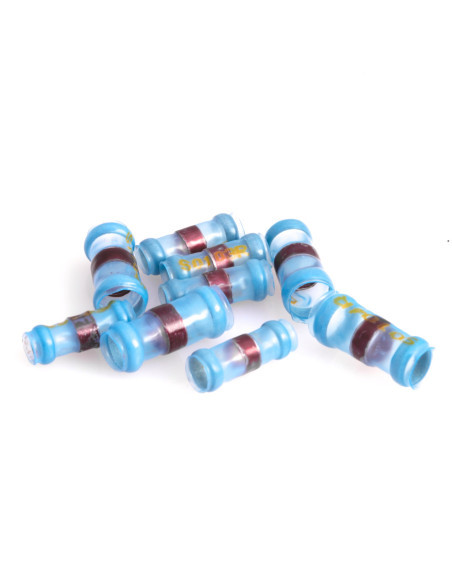

Raychem Solder Sleeves
- One-piece design offers easy installation and lower installed cost

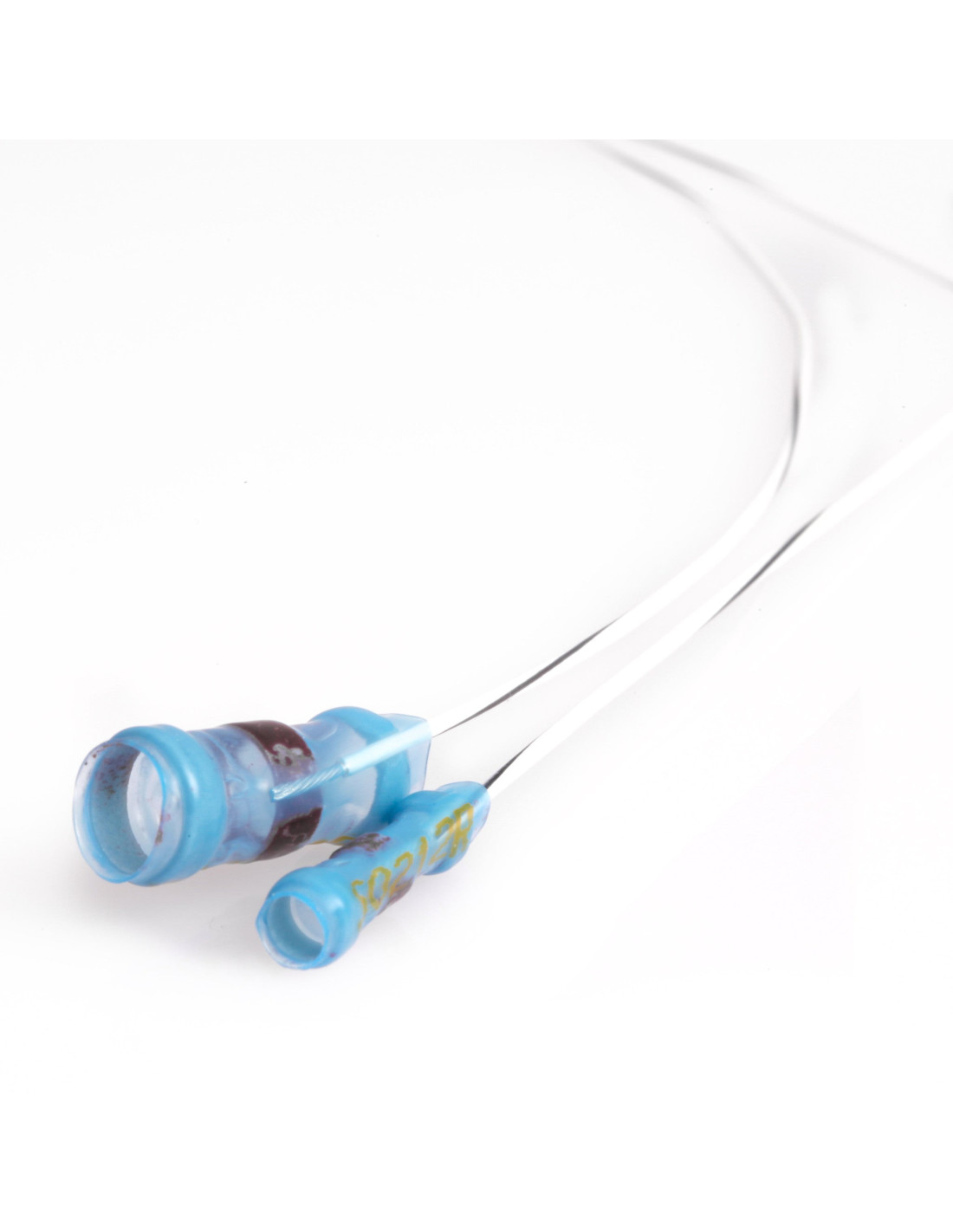

- Option pre-installed ground leads provide convenience and ease of installation

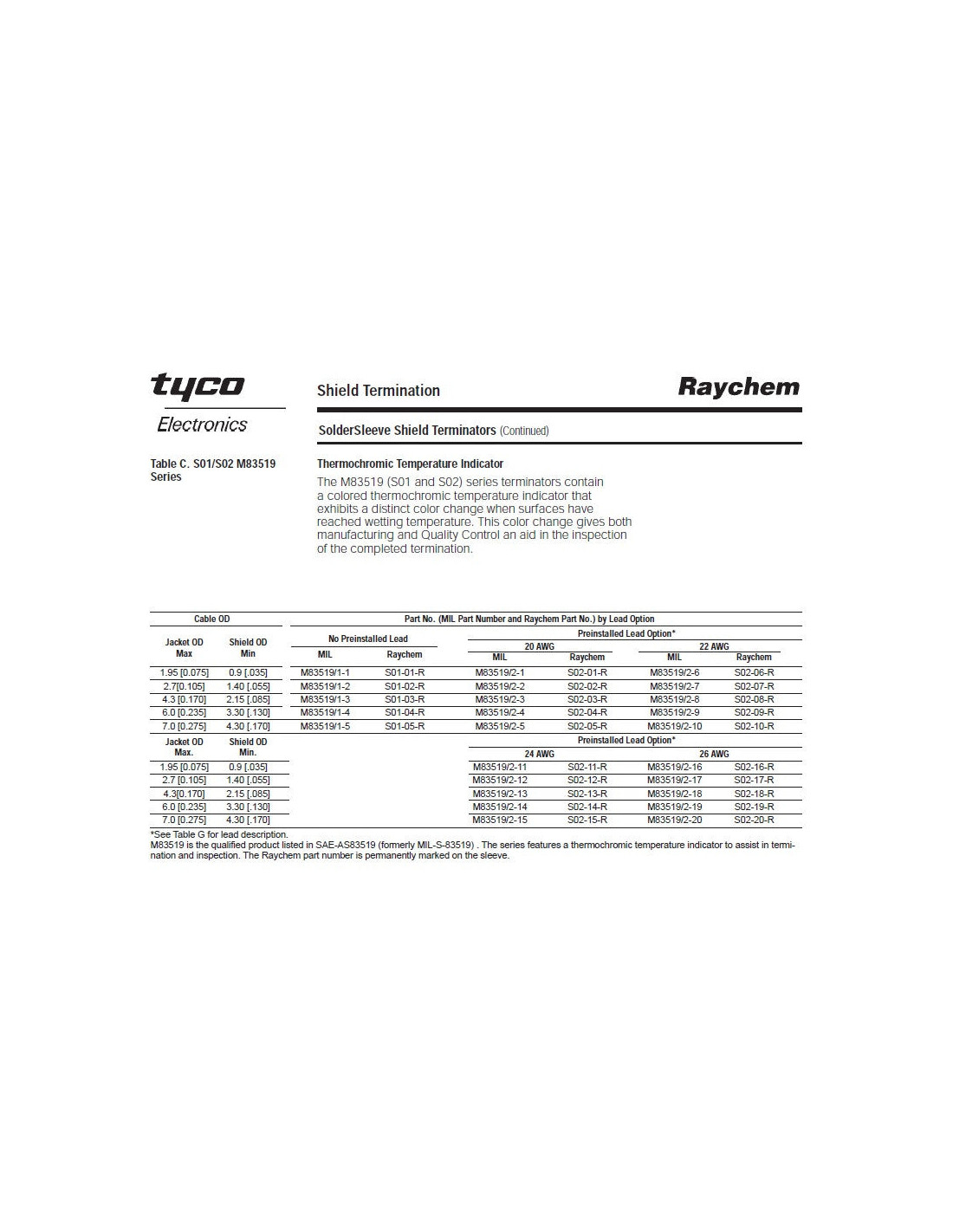

- Qualified to SAE-AS83519 (formerly MIL-S-83519), supplied with thermochromic temperature indicator that exhibits a distinct color change when the surfaces have reached wetting temperature
- Immersion resistant
- Voltage Drop 2.5mV
- Tensile Strength Exceeds strength of ground lead
- Dielectric Strength 1.0 kV immersed
- Insulation Resistance 1000 megohms
- Operating Temperature -55° to 150°C (-67° to 302°F)
Select the appropriate size/option for the mil-spec Solder Sleeves from the drop-down list.
